Features of the Graflex Super-D

Automatic Diaphragm
You focus with lens wide
open. Press the shutter release
and diaphragm automatically
closes to any preset aperture
for your picture. No other
camer has this feature!		 Interchangeable Lenses
Standard and telephoto lenses
may be used interchangeably.
Accessor telephoto lenses
bring subjects up close...
help control perspective.
Revolving Back
You change from vertical to
horizontal in an instant, not
by changing camera position
but by simply turning the

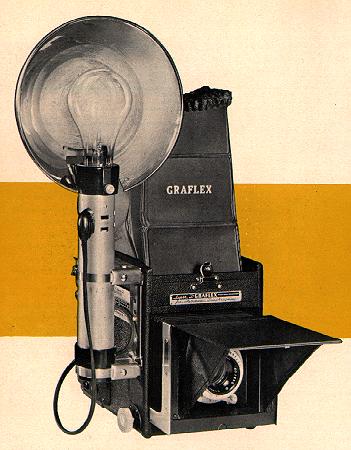

back as desired.		 Flash Synchronization
Built-in, this feature permits
using high shutter speeds
with long peak, focal plane
flash lamps, regular flash
lamps, and high speed
electronic flash (with drop
curtain setting).
Focal Plane Shutter
By providing a wide range of
shutter speeds up to 1/1000
second, you can take any picture...stop any action.
Eight speeds in all to meet
any lighting requirement.		 Carrying Case
The Graflex Deluxe case,
made of leather, holds
the camera, Graflite flash
equipment, film holders,
and smaller accessories.
Furnished with shoulder
pad and strap.
Ektalite Field Lens
Located just beneath ground
glass, this lens gives image of
maximum brightness clear
to the corners. You see a clear
image even in poor light or
with lens stoped down for
determining depth of field.		 Film Versatility
Roll, pack[obsolete], or
sheet film can be used
interchangeably.

Specifications

  • Picture size
    3-1/4 x 4-1/4 or 4x5 inches, depending on model, using film pack or sheet film. Roll holder accomodates any 120 size roll film with choice of 8 pictures 2-1/4x3-1/4 or 12 pictures 2-1/4x2-1/4, according to roll holder selected.
  • Camera Size
    3-1/4 x 4-1/4 Super D measures 7-1/2" x 5-1/2" x 7-3/4" when closed; weighs 80 oz. 4x5 Super D measures 8-3/4" x 6-1/4" x 8-1/2"; weighs 112oz. A convenient handle is provided on top of the camera.
  • Lenses
    Closest working distances are as follows:
    • Format Lens Mininum
    Distance
    3-1/4x4-1/4 6" 20"
    7-1/2" 60"
    10" 55"
    4x5 7-1/2" 20"
    15 110"

    Supplementary portrait and copy lenses will permit closer working distances if required.

  • Flash
    3-1/4x4-1/4 Super D recommended shutter speeds are 1/200, 1/400, 1/1000 when using GE No. 31 or Sylvania No. 2A flash lamps. 4x5 Super D recommended shutter speed with same lamps is 1/1000. Eitehr size may be used with other flash lamps or high speed electronic flash with drop curtain setting.
  • Shutter Speeds
    The simplified Super D focal plane shutter is extremely accurate and provides a useful range of speeds which include 1/30, 1/60, 1/125, 1/200, 1/300, 1/400, 1/800, 1/1000 plus 1/5 (drop curtain) and "Time" setting.
  • Construction
    Super D body is made of seasoned Honduras Mahogany, thoroughly reinforced an dsturdily constructed to last a lifetime. External metal parts are finished in chrome or black enamel and the camer is covered with fine morocco grain leather.
